MF-X Series Standard Backlash, Economy Planetary Gearbox
Planetary Gearbox Features

．Backlash:

Stage1 (L1): Standard: ≦5 arc-min

Stage2 (L2): Standard: ≦8 arc-min


．Ratio:

Stage1(L1): 3-10

Stage2(L2):12-100


．Efficiency of Full Load:

Stage1(L1): ≧98%

Stage2(L2): ≧95%

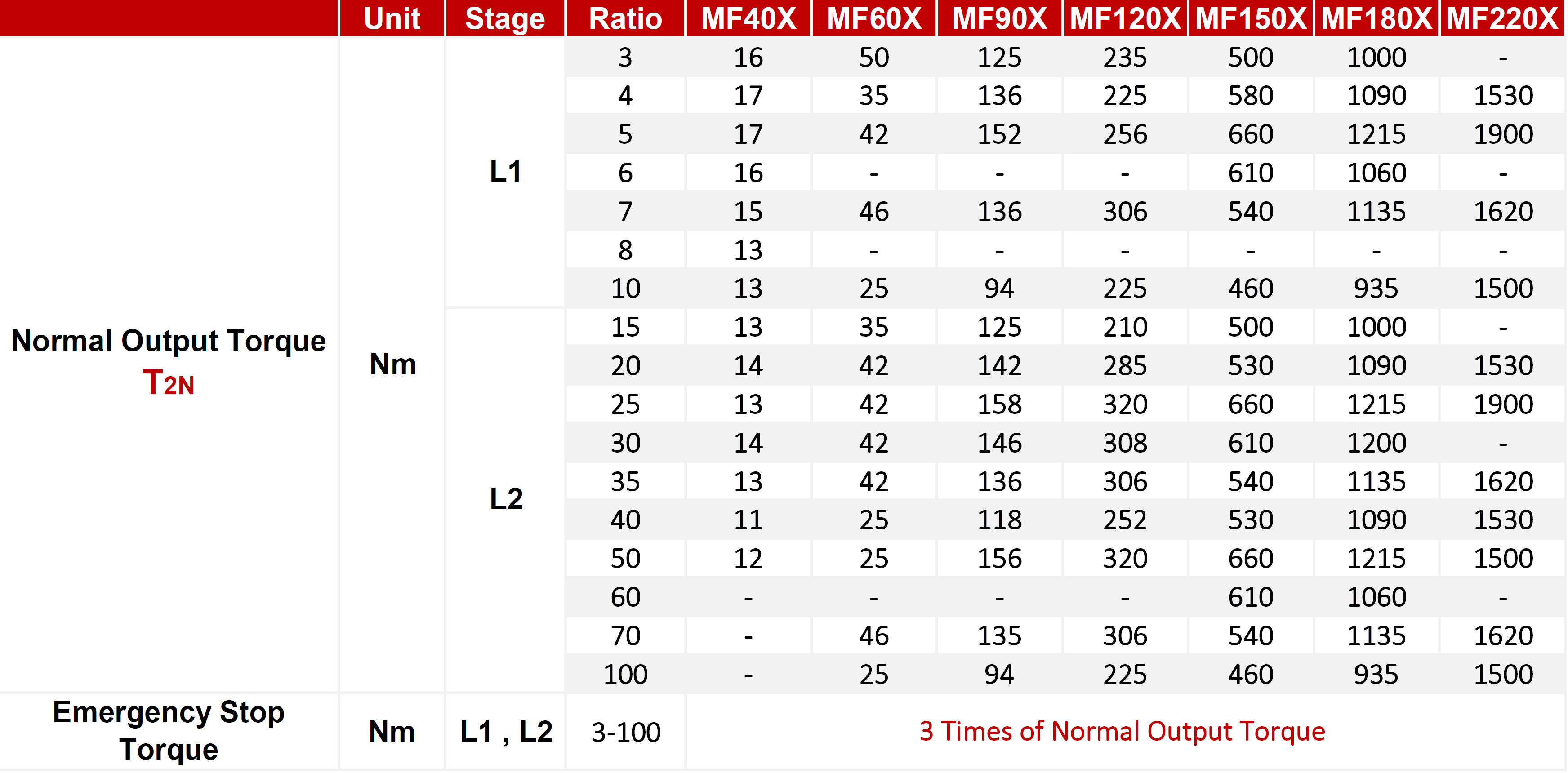

．Normal Output Torque: Torque: 11-1900 Nm/p>

．Running Noise: 65-72 dBA

．Protection Grade: IP65

Catalog
Drawing
Frame Size
40
60
90
120
150
180
220

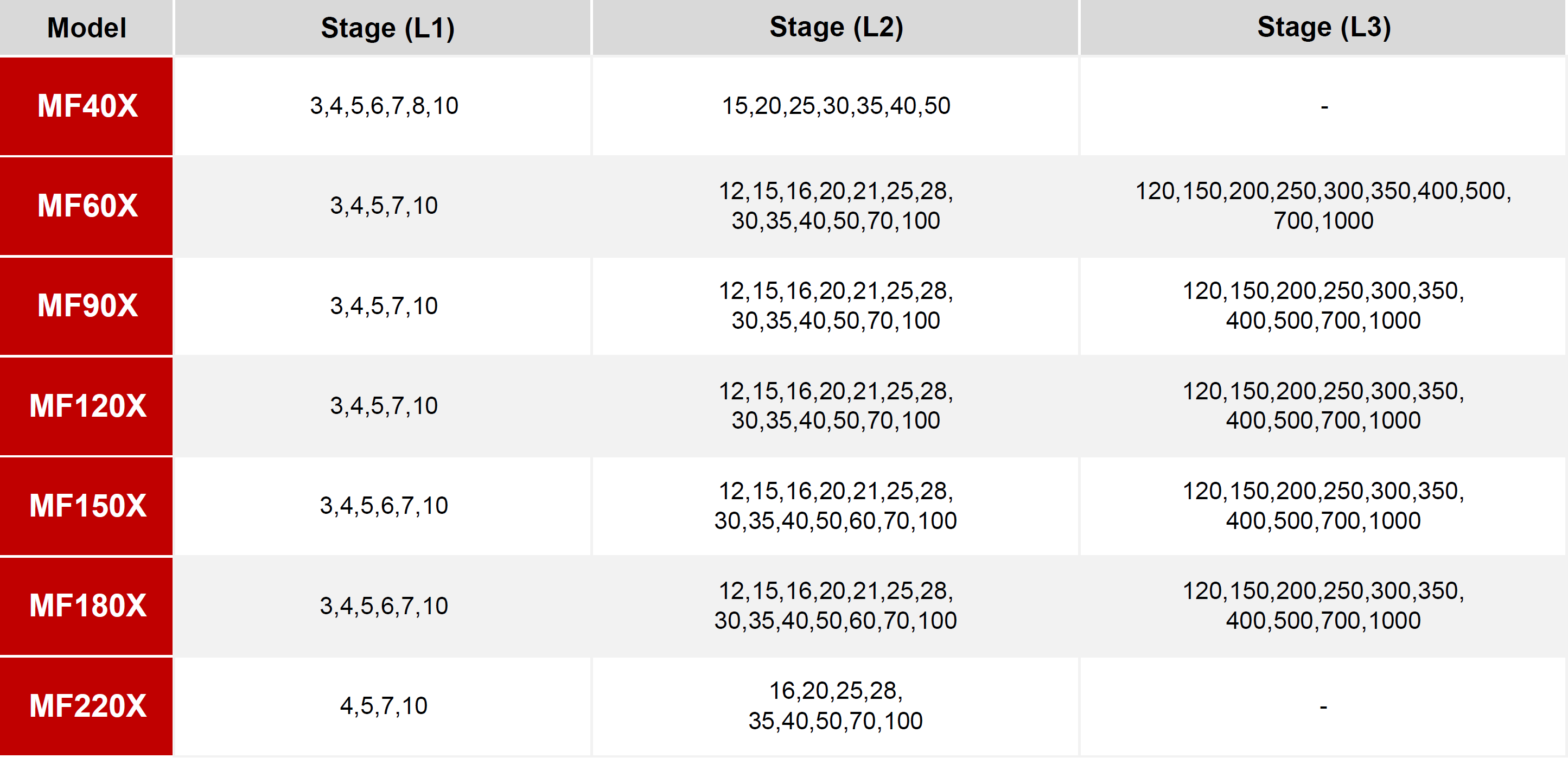

Ratio
Stage1 (L1):
3
4
5
6
7
8
9
10
Stage2 (L2):
12
15
16
20
21
25
28
30
35
40
45
50
60
70
80
90
100
Other ratio
Please contact us
Backlash

Standard Backlash:
(L1): ≦8 arc-min
(L2): ≦12 arc-min

Output Shaft Type
(K) Output Shaft with Key
(S) Output Shaft without Key (Smooth)

Features

．The highest dynamics in multiple axis systems

．Unrivaled price-performance ratio

．Low heat generation at highest speeds

．For any mounting position

．Lifetime lubrication for maintenance-free operation

．Precise gearing

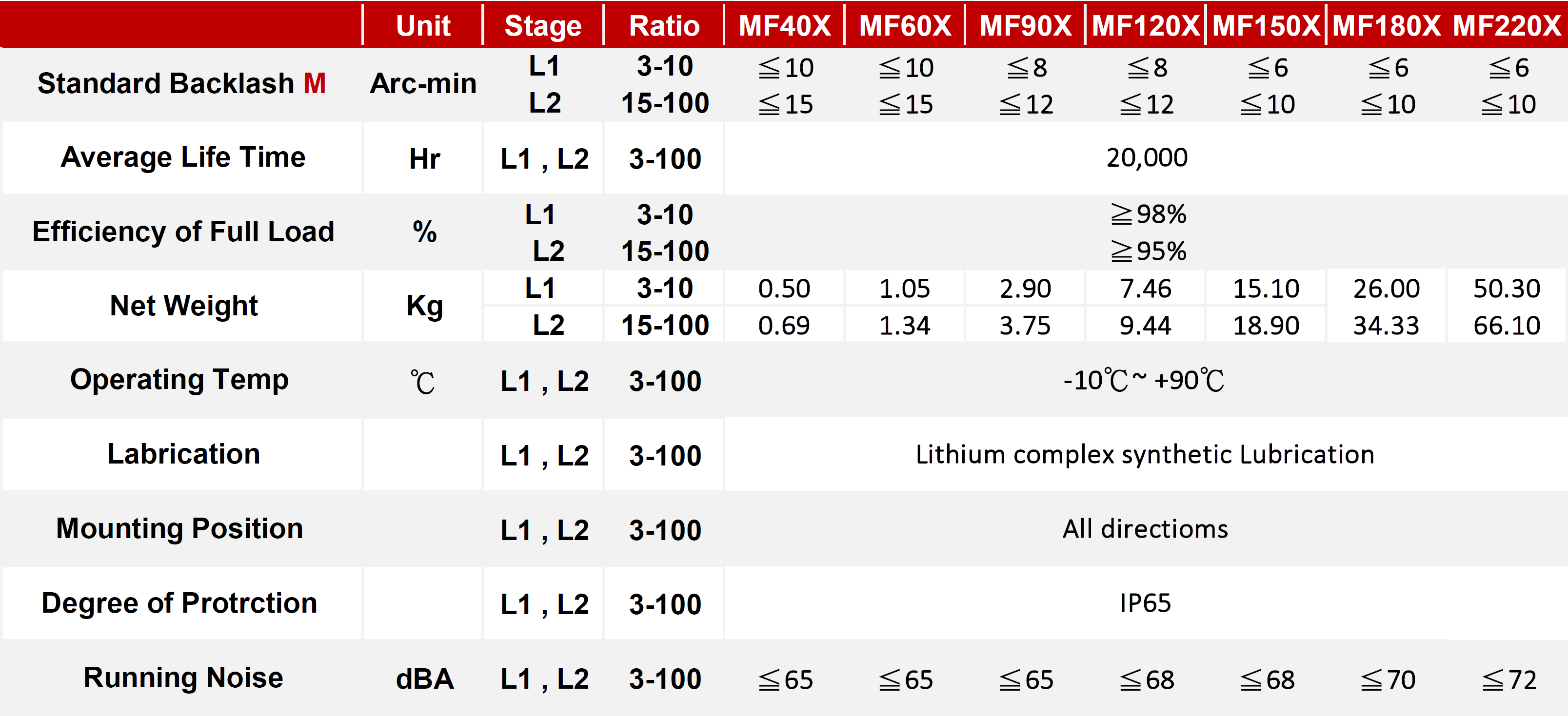

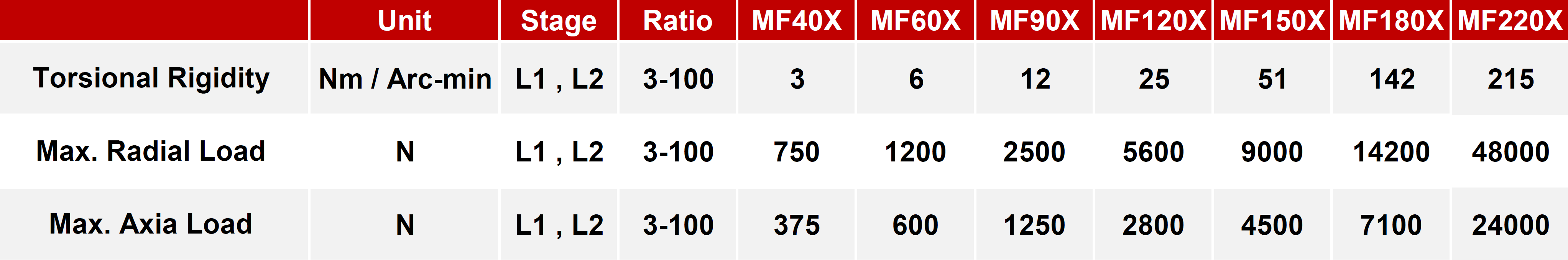

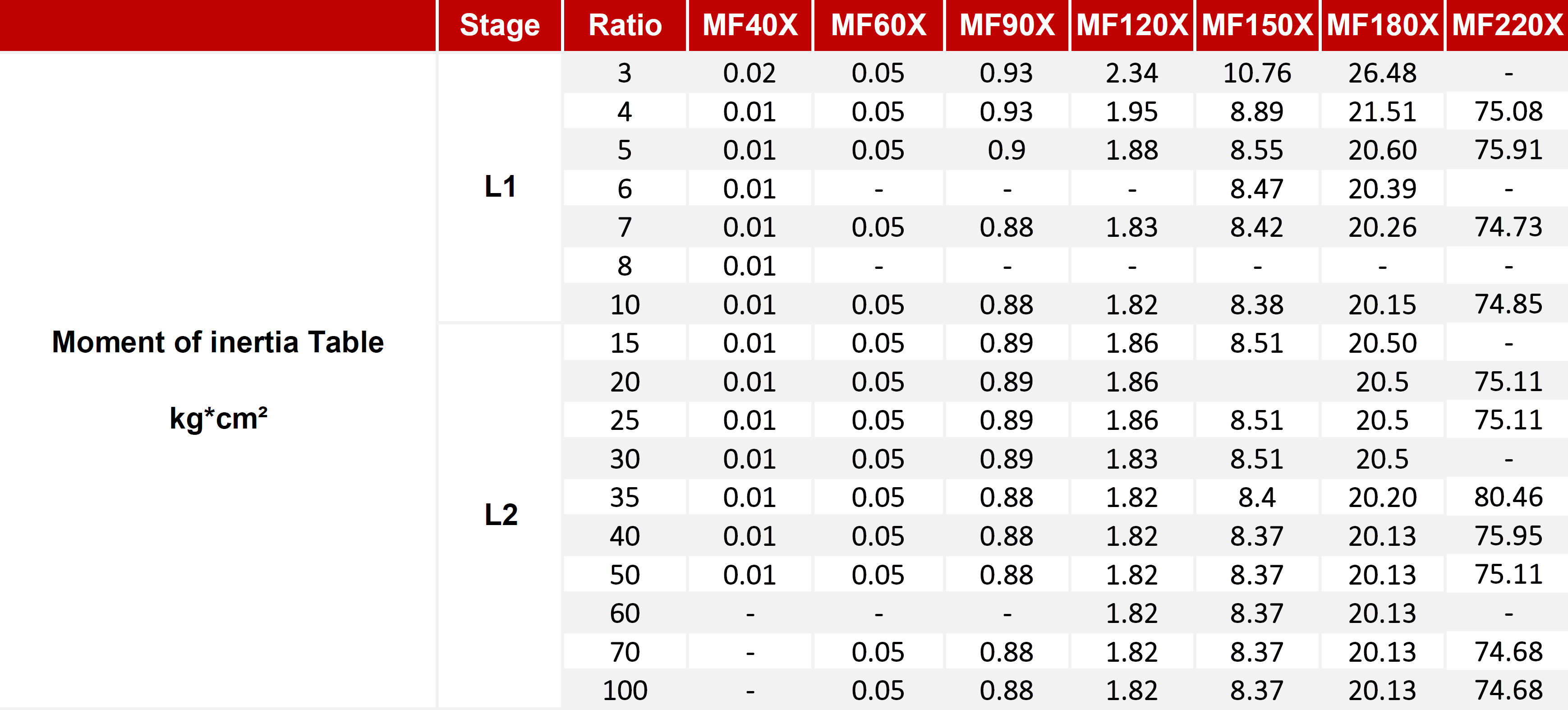

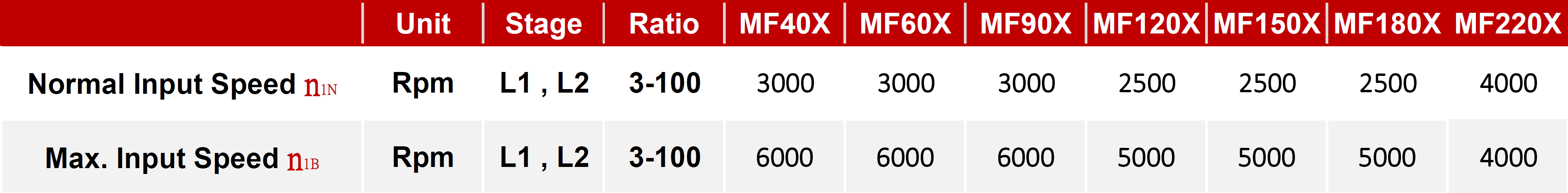

Technical specifications

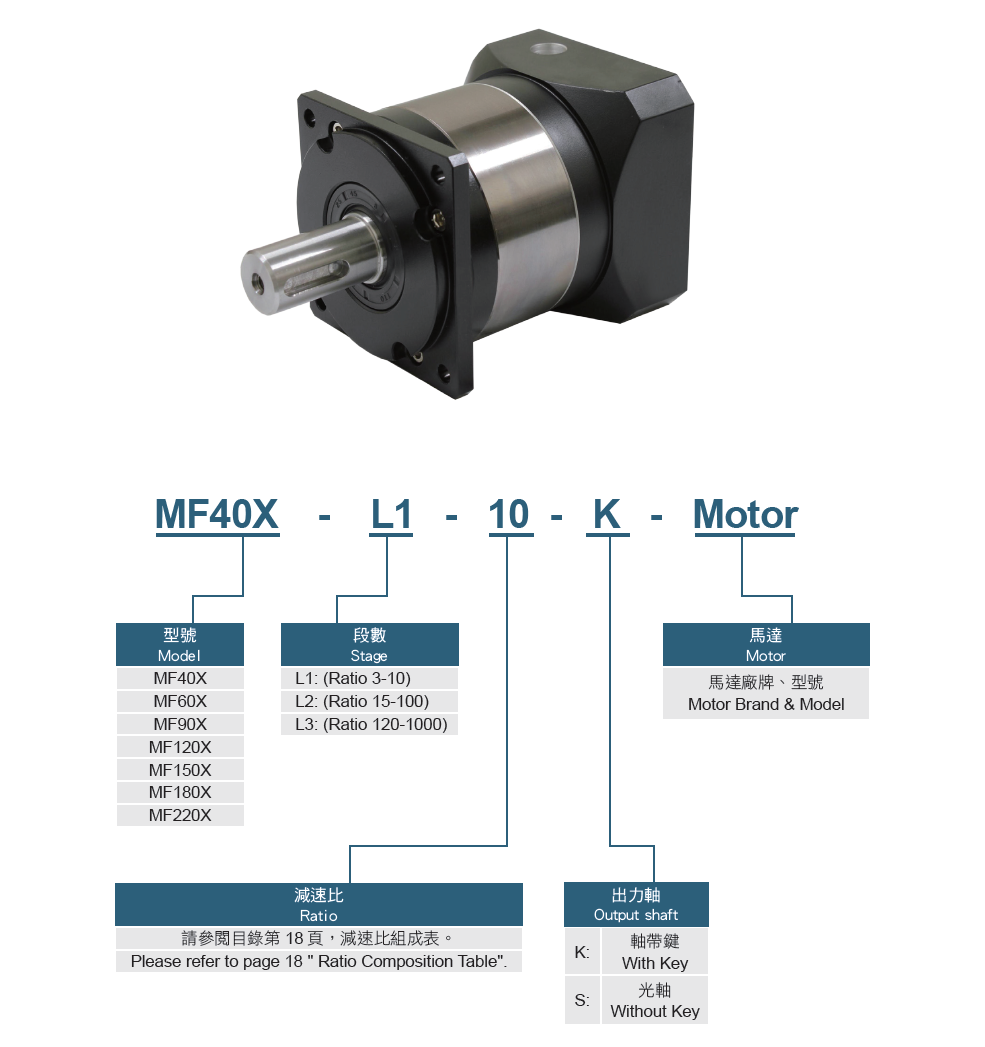

Model


VGM
