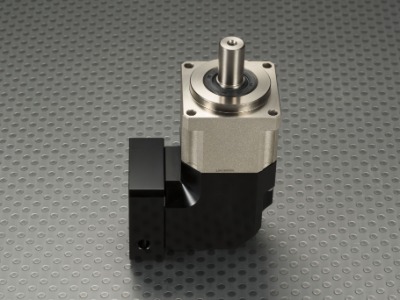

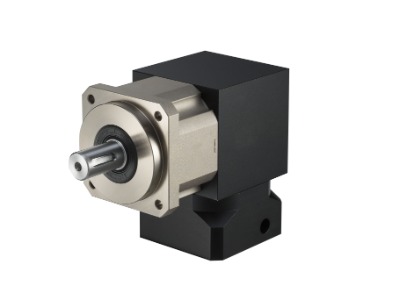

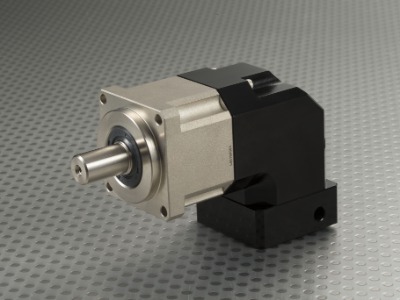

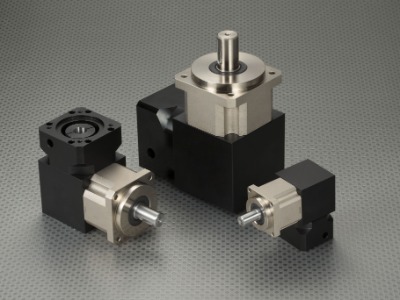

KHL Series Space-Saving Design Right Angle Planetary Gearbox
Planetary Gearbox Features

．Backlash:

Stage1 (L1):

(M) Standard: ≦6 arc-min

Stage2 (L2):

(H) Precision: ≦7 arc-min

(M) Standard: ≦9 arc-min


．Ratio:

Stage1(L1): 3-20

Stage2(L2): 25-200


．Efficiency of Full Load:

Stage1(L1): ≧94%

Stage2(L2): ≧91%

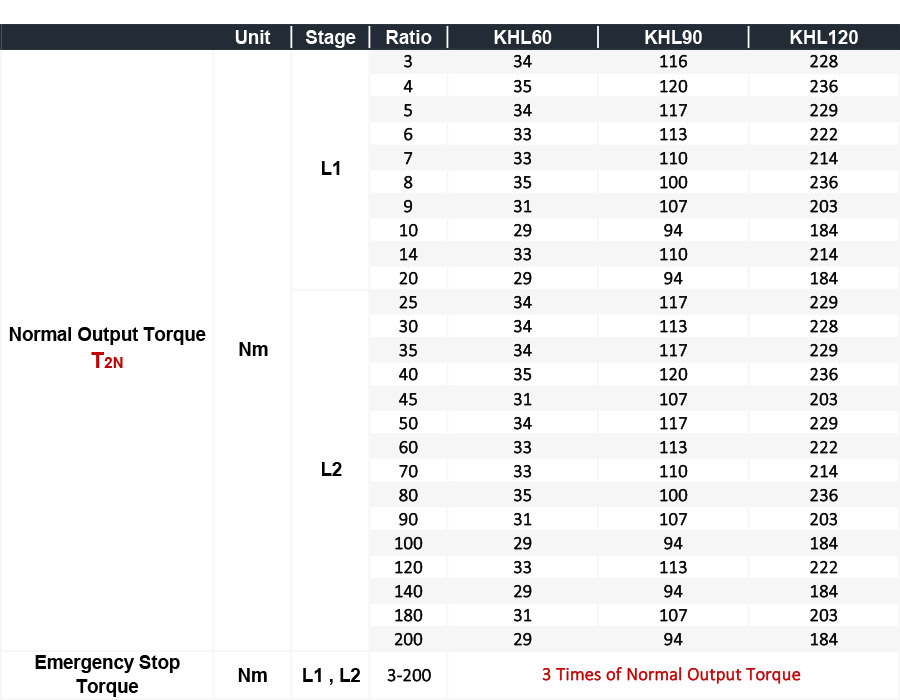

．Normal Output Torque: Torque: 29-229 Nm

．Running Noise: 68-70 dBA

．Protection Grade: IP65

Catalog
Frame Size
60
90
120

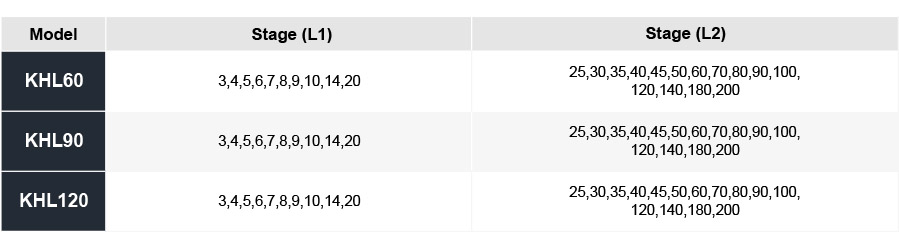

Ratio
Stage1 (L1)
3
4
5
6
7
8
9
10
14
20
Stage2 (L2)
25
30
35
40
45
50
60
70
80
90
100
120
140
180
200
undefined
Other ratio
Please contact us
Backlash

(M) Standard Backlash:
(L1): ≦3 arc-min
(L2): ≦5 arc-min
(H) Precision Backlash:
(L1): ≦3 arc-min
(L2): ≦5 arc-min

Output Shaft Type

(K) Output Shaft with Key
(S) Output Shaft without Key (Smooth)


Features

．The highest dynamics in multiple axis systems

．Unrivaled price-performance ratio

．Low heat generation at highest speeds

．For any mounting position

．Lifetime lubrication for maintenance-free operation

．Precise gearing

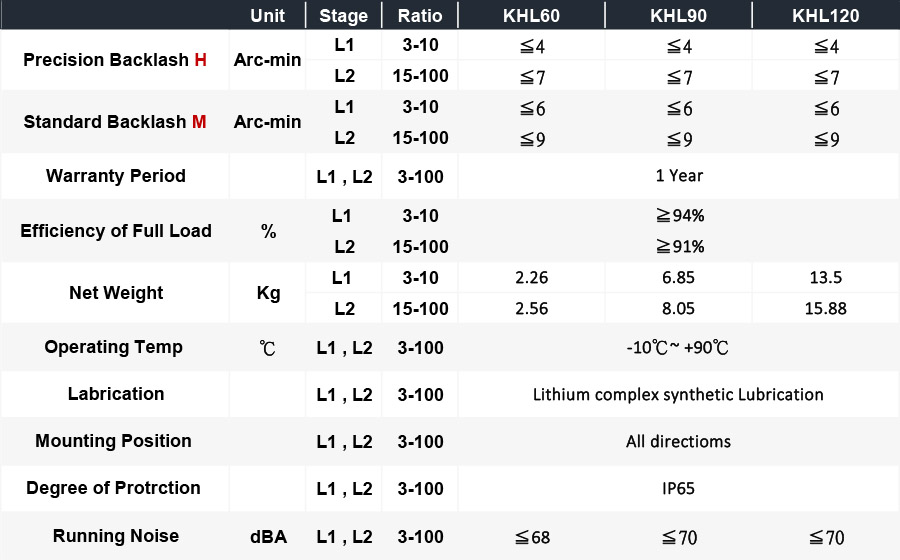

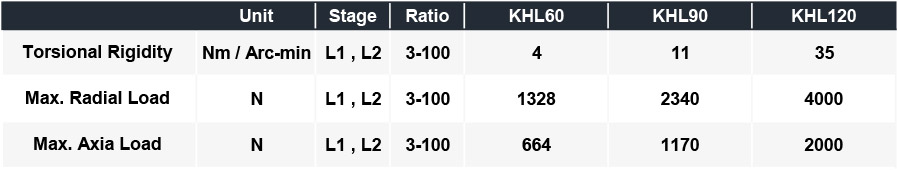

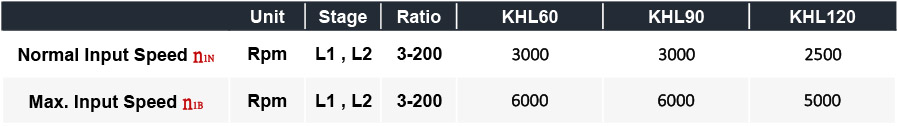

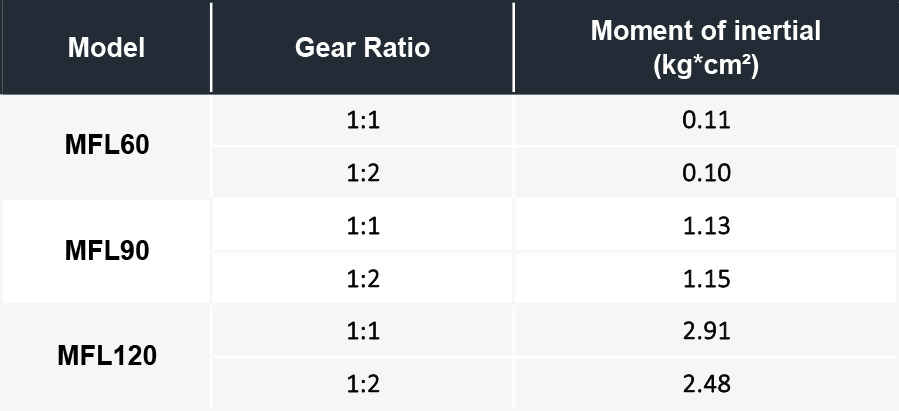

Technical specifications
Model
